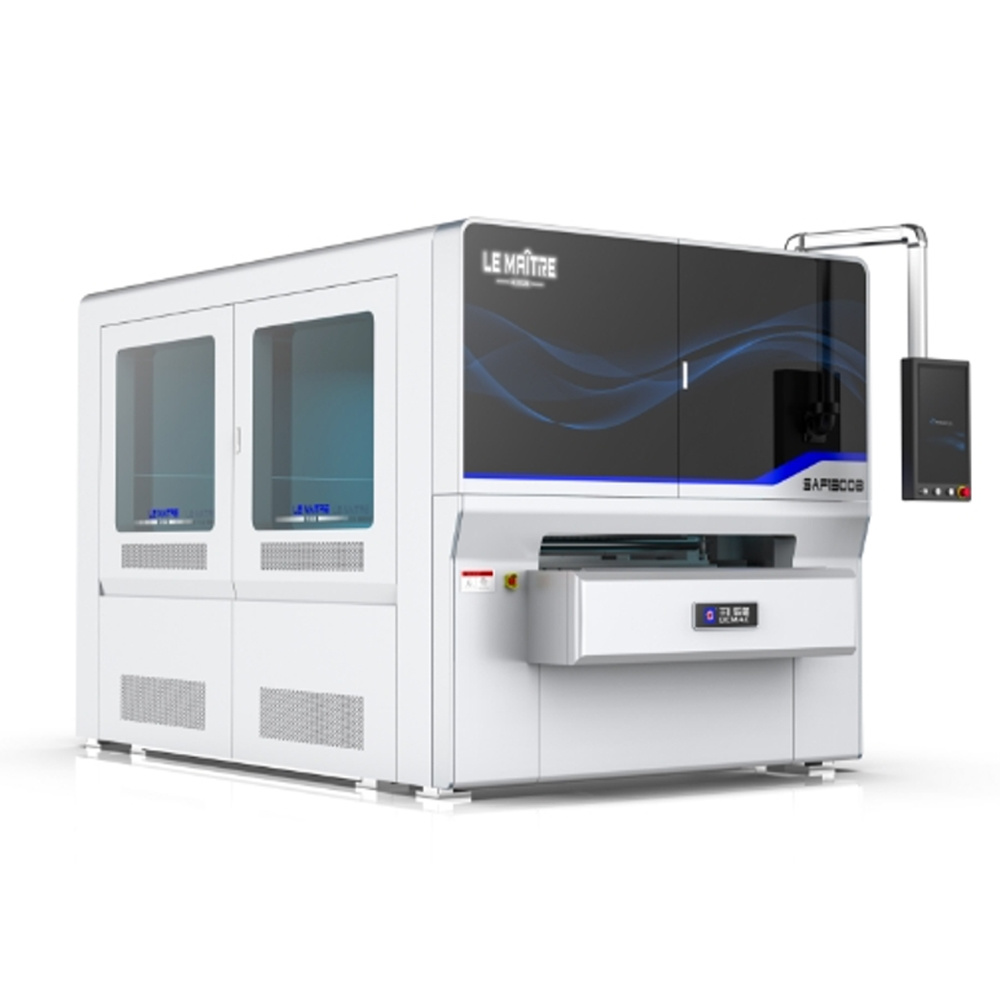

SAF1300B-2

Classification:

Piano Key Series Sander

Summary:

The company introduces international advanced technology and production inspection equipment. The development and design of products all adopt international advanced three-dimensional (3D) three-dimensional design.

Tel:

400-008-0088

E-mail: sales@qianchuanshebei.cn Inquire immediately

　　● The conveying section features an automatic floating mechanism, effectively protecting the workpiece from impact caused by excessive thickness.

　　● Features automatic compensation, with a maximum compensation thickness of 1 mm.

　　● The entire frame is fabricated by welding profiled sections and undergoes artificial aging treatment, ensuring excellent dimensional stability and enabling the sander to operate more securely, smoothly, and reliably. Its elegant, streamlined design also delivers a refined tactile quality.

　　● A servo motor is employed, enabling lifting and lowering with an accuracy of 0.01 mm—comparable to the precision of metalworking machine tools.

　　● Equipped with a central information-processing system, it features independent calibration and control for each proportional solenoid, ensuring uniform sanding pressure and incorporating specialized edge‑and‑corner protection, enabling even sanding of boards with uneven thickness.

　　● An infeed sensor is installed, reducing the scan pitch to 16 mm and enabling more precise control of scanning accuracy.

　　● Large-scale PLCs equipped with dedicated proportional amplification modules for control

　　● Electromagnetic proximity sensors ensure stable equipment operation.

　　● Integrated touch-screen control and computing system with a custom-designed proportional solenoid

Structural Configuration Diagram of Model SAF1300B-2

The SAF1300B-2 model is suitable for veneering engineered wood panels and for sanding primers and topcoats such as PV, PU, PE, and melamine, delivering a highly refined sanding finish on sanded surfaces.

Technical Specifications

Processing width	60-1300mm
Processing thickness	3~120mm
Processing length	≥300mm
Abrasive belt dimensions (width × circumference)	150 x 4500mm 1330 x 2620mm
Shipping speed	7-20m/min
Main motor power	11kW, 15kW, 15kW
Working pressure	0.55Mpa
Compressed air consumption	1.8 m³/min
Vacuum airflow volume	13,000 m³/h
Vacuum airflow speed	25m/s
External dimensions (Length x Width x Height)	2970 x 2250 x 2240mm
Net weight	6400kg
